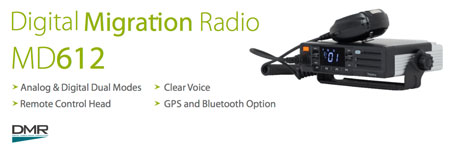

Hytera MD612i DMR Mobile UHF 45-Watt Radio

(1 review) Write a Review

SKU:
MD612i-U1
Availability:
In Stock
$440.00
Price Match Guaranteed Badge

We Accept Purchase Orders Upon Credit Approval

The new MD612i Digital Mobile Radio is the right choice for schools, truck and taxi fleets, agribusiness, and ambulance services. With a high RF power output up to 50 Watts, the MD612i is a cost-effective digital radio that can dramatically increase your communication range.


Technical Specifications

General

Frequency Range
UHF: 400-470 MHz*; VHF: 136-174 MHz
Channel Capacity
48 (16 channels per zone)
Digital Protocol
ETSI-TS102 361-1,-2,-3
Operating Voltage
13.6 V ±15%
Dimensions
6.45" x 1.69" x 5.9", 164 x 43 x 150 mm
Weight
2.42 lb, 1100 g
Display
2-digit numerical display

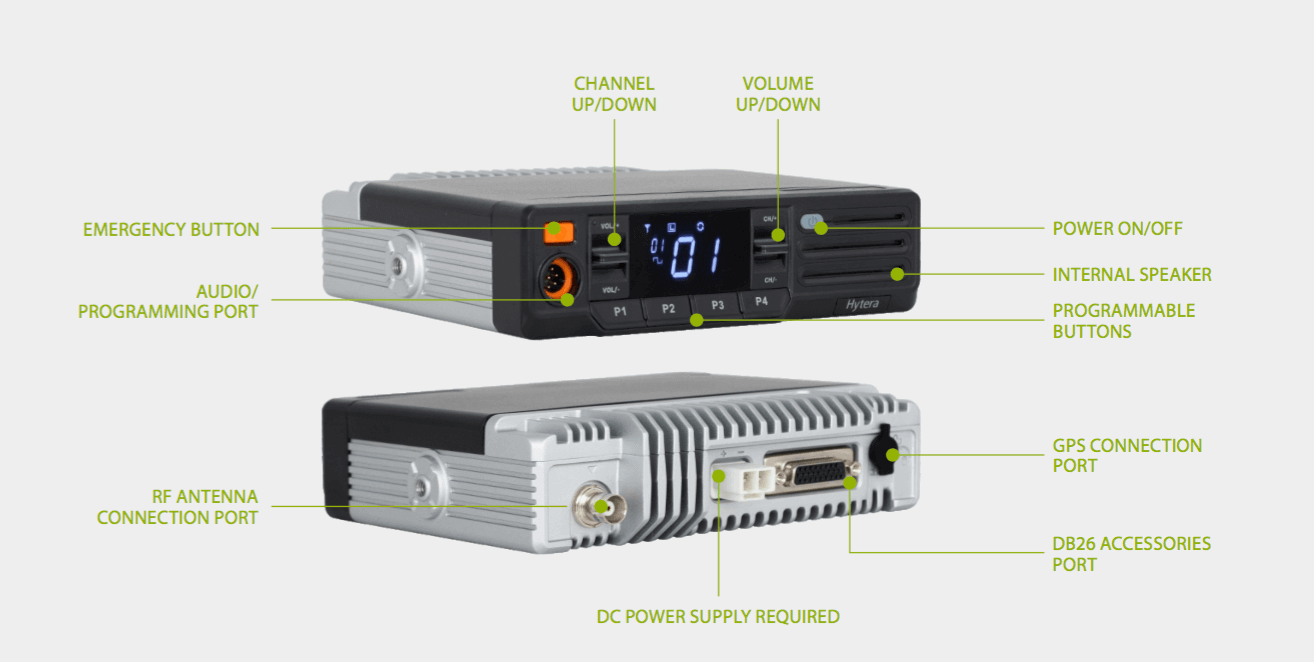

Programmable Buttons
4
Radio Registration Service
Yes

Environmental Specifications

Operating Temperature
-22°F to +140°F, -30°C to +60°C
Storage Temperature
-40°F to +185°F, -40°C to +85°C
ESD
Temperature & Temperature Shock
MIL-STD-810 G
Humidity
MIL-STD-810 G
Shock & Vibration
MIL-STD-810 G
Dustproof & Waterproof
IP54

Transmitter

RF Power Output
Low power version:1-25W (UHF/VHF) High power version: 5-45W(UHF) / 5-50W(VHF)
FM Modulation
# 11K0F3E @ 12.5KHz; 16K0F3E @ 25KHz
4FSK Digital Modulation
12.5KHz Data Only: 7K60FXD 12.5KHz Data & Voice: 7K60FXW
Conducted/Radiated Emission
-36dBm<1GHz; -30dBm>1GHz
Modulation Limiting
±2.5KHz @ 12.5KHz ±5.0KHz @ 25KHz
FM Hum & Noise
40dB @ 12.5KHz 45dB @ 25KHz
Adjacent Channel Power
60dB @ 12.5KHz; 70dB @ 25KHz
Audio Response
+1 ~ -3dB
Audio Distortion
≤3%
Digital Vocoder
AMBE++ or SELP

Receiver

Sensitivity (Analog)
0.3μV (12dB SINAD); 0.22μV (Typical) (12dB SINAD); 0.4μV (20dB SINAD)
Sensitivity (Digital)
0.3μV /BER5%
Selectivity (TIA-603 and ETSI)
60dB @ 12.5KHz / 70dB @ 25KHz
Intermodulation (TIA-603)
70dB @ 12.5/25KHz
Intermodulation (ETSI)
65dB @ 12.5/25KHz
Spurious Response Rejection (TIA-603 and ETSI)
70dB @ 12.5/25KHz
Blocking (TIA-603)
90dB
Blocking (ETSI)
84dB
Hum and Noise
40dB @ 12.5KHz 45dB @ 25KHz
Rated Audio Power Output
Internal (@16 ohm load) 4W External (@8 ohm load) 8W
Max Audio Power Output
Internal (@16 ohm load) 6W External (@8 ohm load) 12W
Rated Audio Distortion
≤3%
Audio Response
+1 ~ -3dB
Conducted Spurious Emission
<-57dBm
Shipping Cost:
Calculated at Checkout
Product Type:
Mobile Radios
Product Type:
Base Stations
Technology:
Digital & Analog (TDMA)
Frequency Band:
UHF
Channels:
48 Channels
Power Output:
45-Watts
Display:
Yes
